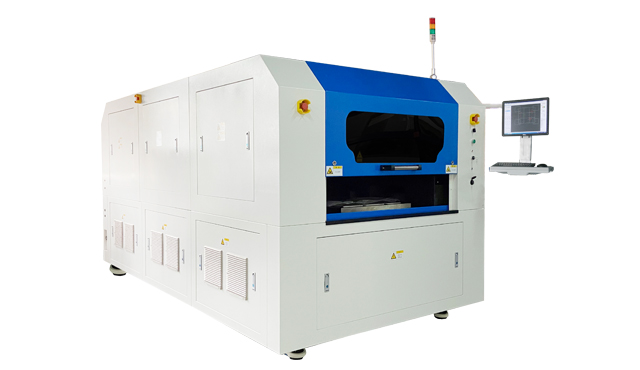

DirectLaser SF9 Super Large Format Laser Precision Cutting Equipment
For new energy large-size FPC applications, Working Area up to: 550mm×2200mm, Compatible with FPC shape processing and cover film cutting, Convenient butt-to-roll/sheet loading and unloading
Features
Directly data driven
Driven directly from customer data, fast product turnaround
High level automation
Conveyor feeder option allows for easy integration into assembly lines
Break through mechanical limits
Laser cutting replaces dies avoiding distortion and breaking through
mechanical limits
Precise laser control
Precise, deep and micron-scale structure operation
Cold cutting with picosecond Laser
Cold cutting with picosecond laser has no thermal effect and expands machinable materials
Product parameters
Technical data | DirectLaser SF9 |
Laser power | 15W（±2W） |
Laser wavelength | 355nm |
Working area | 510mm x 640mm |
Platform | Granite table and linear motor |
X/Y/Z resolution | 1μm |
Repetitive accuracy | ±2μm |
Data processing software | CircuitCAM 7 Standard |
System operating software | DreamCreaTor 3 |
Automatic feed | Optional |
Automatic CCD camera fiducial positioning | Optional |
Exhaust unit | Optional |
Dimension（W x H x D) | 2,100mm x 1,800mm x 2,400mm |
Weight | 2,500kg |
Power requirements | 380VAC/50Hz,3.0kW |
Operation temperature | 22℃±2℃ |
