Precise laser processing systems

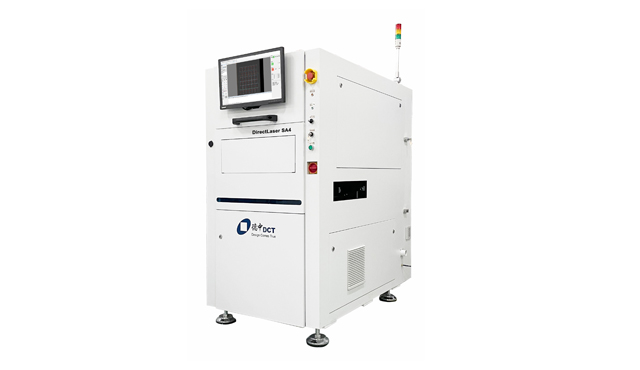

DirectLaser SA4 Online PCBA Laser Depaneling Equipment

DirectLaser SA4 takes the track online processing and max working area can reach 350 x 350mm. The compact structure can fast combine SMT production line, therefor it can be fit for any PCBA shape cutiing. All kinds of production can be easy swiched through different tools installing and 3 - Step track online feeding,on the other hand, conductive operation let workers lern to use fast. All of them accord with Chinese and European design


standard, safety and reliable. The equipment system sets normative interface, and can intergrate into MES system, and whole working area ist close for safety in processing.


Product parameters


Technical data

DirectLaser SA4

Max. layout area

350mm*350mm

Platform

Granite Platform, Linear motor

Laser pulse width

Picosecond and Nanosecond

Laser wavelength

355nm/532nm

X / Y resolution

0.5μm

Repeated accuracy

±2μm

System operating software

CircuitCAM7 Laser

Data processing software

DreamCreaTor3

Automatic feeding

3-Step track transfer

Camera positioning

Standard

Vacuum system

Standard

Dimension(W x H x D)

940mm x 1,720mm x 1,650mm

Weight

3×380V+N+PE, 50Hz, 3.0kW

Power

22℃±2℃

Ambient temperature1,500kg
