Precise laser processing systems

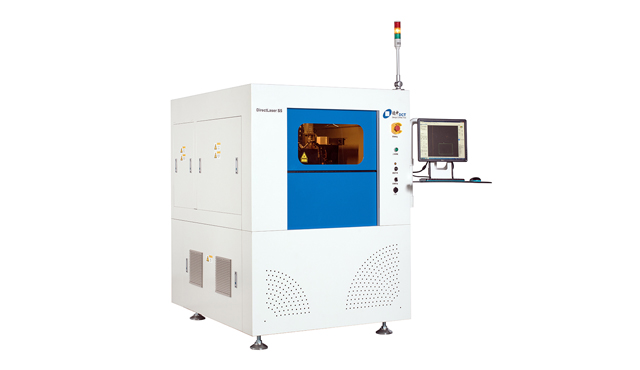

DirectLaser SF5 Universal Laser Precision Cutting Equipment

DirectLaser SF5 classic models of S series, the equipment using the classic bridge structure, the use of X/Y axis separation motion structure, processing head moves on a stable bridge around the X direction, workpiece clamping platform moves along the Y axis back-and-forth. Two axes are independent and not interfere with each other.


Features

Directly data driven

Driven directly from customer data, fast product turnaround

High level automation

Conveyor feeder option allows for easy integration into assembly lines

Break through mechanical limits

Laser cutting replaces dies avoiding distortion and breaking through mechanical limits

Precise laser control

Precise, deep and micron-scale structure operation

Cold cutting with picosecond Laser

Cold cutting with picosecond laser has no thermal effect and expands machinable materials

Product parameters

Technical data

DirectLaser SF5

Working area

520mm x 500mm

Platform

Granite table and linear motor

Data acceptance

Gerbera, HPGL, Sieb & Meier, Excellon, ODB++, DXF

Laser wavelength

355nm or 532nm, optional

Laser pulse width

From 800fs to 10ns dependent on laser source selection

X/Y/Z resolution

2μm

Reapetative accuracy

±2μm

Dimension(W x H x D)

1,560mm x 1,250mm x 1,915mm

Weight

Approx. 1,500kg

Data processing software

CircuitCAM 7 Standard

Machine software

DreamCreaTor 3

Power requirements

380VAC/50Hz,2.4kW

Ambient temperature

22℃±2℃
