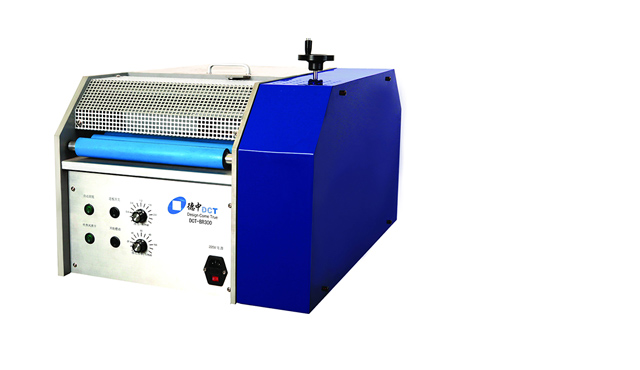

BR Series Brushing Machines

Professional brushing machines at reasonable prices are possible. DCT BR series have height adjustable brushes, adjustable oscillation and transport speed as well as fully wipe and dry zones. Suitable for all cleaning steps in PCB or printing industry.


Features

High quality brush roll

PCB Industrial special roller, long life, good brushing effect

Professional inverter drive unit

High speed, low noise

Controllable brush width

Brush height and pressure adjustable, uniform and controllable brush width

Optional water circulation base

Water circulation base as option available, it can be used without water-wastewater system

Product parameters

Technical data

BR300

BR300B

Board thickness

0.2~4mm

0.2~4mm

Max. Board width

300mm

300mm

Conveyor speed

0.2~2m/min

0.2~2m/min

Oscillation stroke

10mm

10mm

Oscillation frequency

0~120/min

0~120/min

Brushing roller outside diameter

Φ91mm

Φ91mm

Brushing speed

1,400rpm

1,400rpm

Dryer temperature

Max.100℃

Max.100℃

Water circuilation base

No

Yes



Working ambient

BR300

BR300B

Power supply

220V/50Hz

220V/50Hz

Power consumption

2.2kW

2.2kW

Dimension(W x H x D)

760mm x 560mm x 440mm

760mm x 560mm x 1,240mm

Weight

45kg

70kg
