Precise laser processing systems

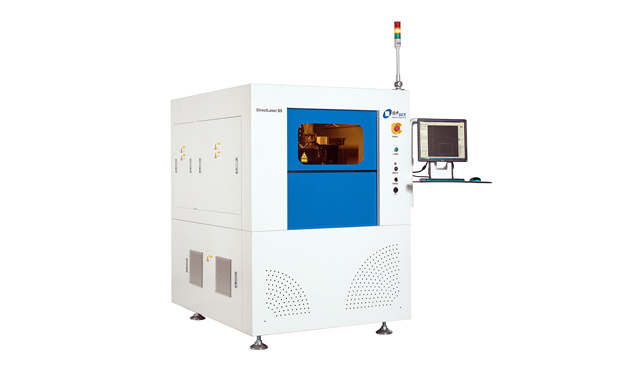

DirectLaser U5 Laser Multifunctional Microfabrication Equipment

DirectLaser U5 is a classical U-series model, which adopts classical bridge structure, i.e. X-axis and Y-axis separated motion structure. The processing head moves around X-axis on stable bridge, and the workpiece clamping table moves around Y-axis. The two systems are independent, and their respective movements do not interfere with each other.

Features

Precise laser control

Precise control of laser parameters realizes cutting and depth cutting rigid, flexible, rigid and flexible materials

Precision drilling micro holes

Break through the traditional limitations, precision drilling micro holes, blind holes, easily achieve high density interconnection

Unification of Multi-functional

Multifunctional, high performance, high quality, high precision

High quality ceramics cutting

Perfect for processing special materials, LTCC cutting, high quality ceramics cutting

Perfect in micron level

TCO/ITO laser processing, display screen silver paste light etching, perfect in micron level

Product parameters

Technical data

DirectLaser U5

Laser wavelength

355nm

Repetitive accuracy

≤±2μm

Scan field X/Y resolution

1μm

X/Y resolution

≤0.5μm

Working area

520mm x 500mm

Data acceptance

Gerber,  HPGL, Sieb & Meier, Excellon, ODB++, DXF

Platform structure

Granite table, bridge

Dimension (W x H x D)

1,560mm x 1,250mm x 1,915mm

Weight

Approx. 1,500kg



Operating ambient

DirectLaser U5

Power requiements

380VAC/50Hz, 3kW

Ambient temperature

22℃±2℃



Configuration and options

DirectLaser U5

Data processing software

CircuitCAM 7

Machine operating software

DreamCreaTor 3

Automatic feeding

Optional

Online laser power measurement

N/A

Laser height measurement

Optional

Camera automatic positioning

Included

Exhaust unit

210m?/hr, 220V, 1.5kW

Workpiece fixture

Vacuum table, customizable fixture

FFU positive pressure cleaning device

N/A
