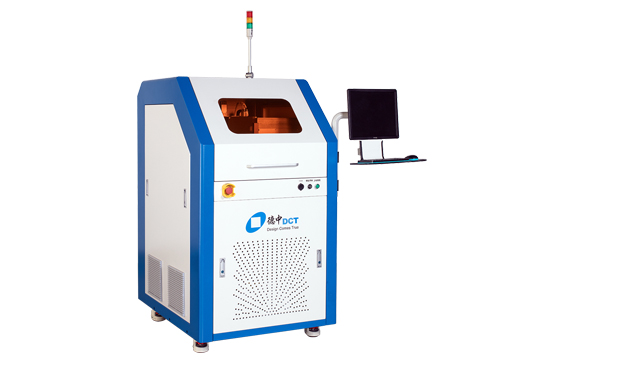

DirectLaser U2 Laser Multifunctional Microfabrication Equipment
DirectLaser U2 is compact and easy to install. X, Y and Z motion systems are ingeniously mounted on granite components. Linear motors are used as power, taking into account both accuracy and stability.
Features
Precise control of laser parameters
High quality ceramics cutting
High quality, high precision
High precision drive system
Integration of exclusive software
Product parameters
Technical Data | DirectLaser U2 |
Laser wavelength | 355nm |
Repetitive accuracy | ≤±2μm |
Scan field X/Y resolution | 1μm |
X/Y resolution | ≤0.5μm |
Working area | 350mm x 300mm |
Data acceptance | Gerber, HPGL, Sieb & Meier, Excellon, ODB++, DXF |
Platform structure | Granite table,cross structure |
Dimension (W x H x D) | 1,000mm x 850mm x 1,430mm |
Weight | Approx. 750kg |
Operating ambient | DirectLaser U2 |
Power requirements | 380VAC/50Hz, 3kW |
Ambient temperature | 22℃±2℃ |
Configuration and options | DirectLaser U2 |
Data processing software | CircuitCAM 7 |
Machine operating software | DreamCreaTor 3 |
Automatic feeding | Optional |
Online laser power measurement | N/A |
Laser height measurement | Optional |
Camera automatic positioning | Included |
Exhaust unit | 210m?/hr,220V,1.5kW |
Workpiece fixture | Vacuum table, customizable fixture |
FFU positive pressure cleaning device | N/A |
