Precise laser processing systems

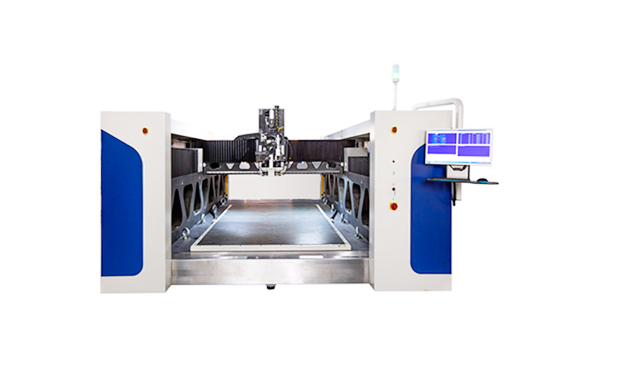

DirectLaser U9 Laser Multifunctional Microfabrication Equipment

DirectLaser U9 is a multi-functional laser micro-processing equipment with super large area. It adopts the double-drive structure of gantry. The processing width can reach 3000x1500mm. It can be processed with two different light sources at the same time. The processing width and accuracy are both considered.

Features

Gantry dual-drive structure

Super large format, gantry dual-drive structure, high precision

Laser driven by CAD data

Data driven, production on demand, perfect for prototyping and production

Precise laser control

Precise control of laser parameters realizes cutting and depth cutting rigid, flexible, rigid and flexible materials

Precision drilling micro holes

Break through the traditional limitations, precision drilling micro holes, blind holes, easily achieve high density interconnection

High quality ceramics cutting

Perfect for processing special materials, LTCC hole drilling, high quality ceramics cutting

Product parameters

Technical data

DirectLaser  U9

Working area

3,000mm x 1,500mm

Laser power

50W

Laser wavelength

1,030nm

Laser impulse width

<10ps

X/Y repetitive accuracy

≤±10μm

Scan field X/Y resolution

1μm

Plattform

Granite table

X/Y movement system

Linear motor



Operating ambient

DirectLaser  U9

Power requiements

380VAC/50Hz, 3kW

Ambient temperature

22℃±2℃



Configuration  and options

DirectLaser  U9

Data processing software

CircuitCAM 7

Machine operating software

DreamCreaTor 3

Automatic feeding

Optional

Online laser power measurement

N/A

Laser height measurement

Optional

Camera automatic positioning

Included

Exhaust unit

210m?/hr,220V,1.5kW

Workpiece fixture

Vacuum table, customizable fixture

FFU positive pressure cleaning device

Optional
